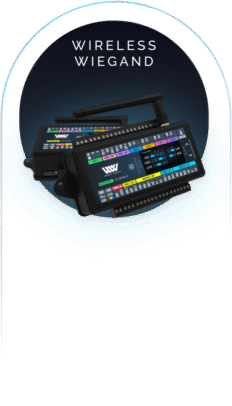

WIRELESS WIEGAND

Access Control Wireless Gateway

WE MAKE IT ALL

From R&D to manufacturing.

Readers

WE MAKE IT ALL

Controllers

Zero-touch button

From R&D to manufacturing.

WE MAKE IT ALL

LUMIRING

All-In-One Access Control —small and powerful controller-reader-everything

ALL YOU NEED IS...

LUMIRING
IS

Open
Architecture

Lumiring is - Open Architecture

Secure

Lumiring is - Open Architecture, Secure

Efficient

Lumiring is - Open Architecture, Secure, Efficient

Resilient

Lumiring is - Open Architecture, Secure, Efficient, Resilient

Smart
Security

Lumiring is - Open Architecture, Secure, Efficient, Resilient, Smart Security

Lumiring is - Open Architecture, Secure, Efficient, Resilient, Smart Security, Easy to Implement

Easy to
Implement

Embedded Security & Wireless Platforms

Scalable hardware designed for integration into access control and infrastructure systems.

AIR-R

Smart Multi Reader RFID + Bluetooth

AIR-B

Zero-Touch Button Exit

AIR-USB

USB-Issuer
RFID Copy-protection supports

Build a Custom Solution

ICON

Two-door access controller
Wired & Wireless networks
Powered 12-24 / POE

ICON-PRO

Four-door access controller
Wired & Wireless networks
Powered 12-24 / POE

Build a Custom Solution

AIR-CR

Wired & Wireless networks
Controller & Multi-reader

RFID Reader 125Khz & 13.56Mhz
RFID Copy protection
NFC Tags supported
Bluetooth Mobile Credentials
TOF Proximity Sensor

Build a Custom Solution

Embedded Access & Wireless Devices

Scalable hardware designed for integration into access control and infrastructure systems.

AIR-USB

USB-Issuer
Supports RFID copy-protection

Build a Custom Solution

ICON

Two-door access controller
Wired & Wireless networks
Powered 12-24 / POE

ICON-PRO

Four-door access controller
Wired & Wireless networks
Powered 12-24 / POE

Build a Custom Solution

AIR-CR

Wired & Wireless networks
Controller & Multi-reader

RFID Reader 125Khz & 13.56Mhz
RFID Copy protection
NFC Tags supported
Bluetooth Mobile Credentials
TOF Proximity Sensor

Build a Custom Solution

The difference is clear

Ready-made solutions for a control of access

We can completely customize our current solution
or create a unique one for your specific needs

Educational Institutions

LumiRing technologies support secure infrastructure environments across educational campuses, enabling reliable wireless transport and integration with existing access control platforms.

Fitness Centers

Our wireless transport systems enable secure, wiring-efficient access integration for membership-based facilities operating extended hours.

Offices

LumiRing provides embedded wireless transport and edge devices designed to integrate with enterprise access control and security systems across distributed locations.

Apartment Complexes

Our platforms support multi-tenant infrastructure environments, enabling integration-ready wireless connectivity for modern building access systems.

Commercial Real Estate

LumiRing technologies are deployed in commercial infrastructure projects requiring secure, long-distance wireless communication and retrofit-friendly integration.

LUMIRING

We can make your ideas a reality.

Our engineering team has experience across embedded systems, wireless communication, physical security infrastructure, and industrial electronics. We support projects from architecture and design through validation, certification, and production.

We develop tightly integrated hardware and firmware systems with a focus on reliability, manufacturability, and real-world deployment performance.

LUMIRING

We can make your ideas a reality.

With a track record of excellence, our innovative engineering team boasts extensive experience in the realms of Physical Security, IT, and Electronics. Our proficiency spans from the inception and meticulous design to rigorous testing and efficient production of cutting-edge electronics. We take pride in crafting solutions that encompass both hardware and software intricacies, ensuring seamless operational efficiency. By harnessing the latest advancements in technology, we remain dedicated to providing unparalleled safety measures for your security needs.

User Testimonials

Alex Low, Germany

I enjoy working with a forward-thinking team at Lumiring. Lumiring Innovative, scalable, efficient, and extra reliable solutions can fit into any environment, even such demanding ones like manufacturing and production lines. Native MQTT support and Low-code implementation was a deal maker for us.

Alex Low
Founder&CEO
F5forty services UG

Giacobazzi Andrea, Italy

I am immensely grateful for your MACS Lite access control solution that benefits my customers. It is the most straightforward solution that can be fully managed from a mobile device. The product quality and functionality are exceptional, and your team provided excellent support for any queries.
Thank you for your great work.

Giacobazzi Andrea
Founder
Eter Biometric Technologies Srl, Italy

Filipe dos Santos Andrade, UK

Grateful for your AllDoors access control solution, which benefits my clients. I’m confident that it will soon become the most useful and flexible solution on the access control market. The product’s quality and functionality are exceptional, and your team has provided excellent support for any inquiries.

Filipe dos Santos Andrade
CEO
Puresystem-Security Solutions, UK

AIR Series

Air Universal RFID/Bluetooth Reader	Air CR Wi-Fi Controller with built-in reader	Air CB Wi-Fi Controller with built-in exit button + Bluetooth reader
CPU 32-bit, 2×240 Mhz	CPU 32-bit, 2×240 Mhz	CPU 32-bit, 2×240 Mhz
Bluetooth support Bluetooth 4.1 / BLE	Bluetooth support Bluetooth 4.1 / BLE	Bluetooth support Bluetooth 4.1 / BLE
WiFi support 802.11 b/g/n 2.4GHz-2.5GHz (2400M-2483.5M)	WiFi support 802.11 b/g/n 2.4GHz-2.5GHz (2400M-2483.5M)	WiFi support 802.11 b/g/n 2.4GHz-2.5GHz (2400M-2483.5M)
Memory N/A	Memory 16 Mb	Memory 16 Mb
Reader frequency 13.56 MHz / 125 kHz	Reader frequency 13.56 MHz / 125 kHz	Reader frequency N/A
Supported tags MIFARE 13,56Mhz; NFC tags; EVM; EM-Marine, Bluetooth	Supported tags All MIFARE 13,56Mhz; NFCtags, EMVCo 3.0 support, M-Marine	Supported tags N/A
Support Phone NFC Pass YES	Support Phone NFC Pass YES	Support Phone NFC Pass NO
Wiegand port 1 Output	Wiegand port 1 Input / Output	Wiegand port 1 Input / Output
Cardholders N/A	Cardholders 10000 (Hardware limit)	Cardholders 10000 (Hardware limit)
Credentials/Physical Keys N/A	Credentials/Physical Keys 30000 (Hardware limit)	Credentials/Physical Keys 30000 (Hardware limit)
Lock N/A	Lock 1 (open collector)	Lock 1 (open collector)
Lock type N/A	Lock type NO, NC	Lock type NO, NC
More >	More >	More >

LRM-2RS RFID reader	LRM-2CRS Wireless Network Controller & Reader RFID	LRM-2CBS Wireless network controller & Touch exit button
CPU 32-bit, 80 Мгц	CPU 32-bit, 80 Мгц	CPU 32-bit, 80 Мгц
Bluetooth support No	Bluetooth support No	Bluetooth support No
WiFi support 802.11 b/g/n	WiFi support 802.11 b/g/n	WiFi support 802.11 b/g/n
Memory N/A	Memory 4 Mb	Memory 4 Mb
Reader frequency 13.56 MHz / 125 kHz	Reader frequency 13.56 MHz / 125 kHz	Reader frequency N/A
Supported tags MIFARE Classic 1K, 4K; MIFARE Classic EV1 1K, 4K	Supported tags MIFARE 13,56Mhz; NFC tags; EVM	Supported tags N/A
Support Phone NFC Pass No	Support Phone NFC Pass No	Support Phone NFC Pass NO
Wiegand port 1 Output	Wiegand port 1 Input / Output	Wiegand port 1 Input / Output
Cardholders N/A	Cardholders 3000	Cardholders 3000
Credentials/Physical Keys N/A	Credentials/Physical Keys 6000	Credentials/Physical Keys 6000
Lock N/A	Lock 1 (open collector)	Lock 1 (open collector)
Lock type N/A	Lock type NO, NC	Lock type NO, NC
More >	More >	More >

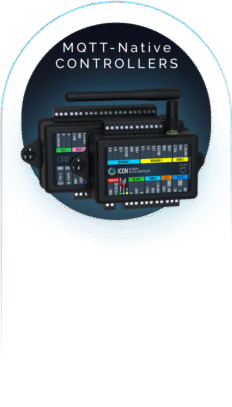

ICON Series

ICON Two-door access controller with wireless network	ICON PE Two-door access controller with wired and wireless network support. Power support POE	ICON MAX Four-door access controller with support for wireless and wired networks. Power support POE
CPU 32-bit, 2×240 Mhz	CPU 32-bit, 2×240 Mhz	CPU 32-bit, 2×240 Mhz
Bluetooth support Bluetooth 4.1 / BLE	Bluetooth support Bluetooth 4.1 / BLE	Bluetooth support Bluetooth 4.1 / BLE
WiFi support 802.11 b/g/n 2.4GHz-2.5GHz (2400M-2483.5M)	WiFi support 802.11 b/g/n 2.4GHz-2.5GHz (2400M-2483.5M)	WiFi support 802.11 b/g/n 2.4GHz-2.5GHz (2400M-2483.5M)
Memory 16 Mb	Memory 16 Mb	Memory 16 Mb+ 32 Gb
Protocol protection Symmetrical Encryption 256 bit	Protocol protection Symmetrical Encryption 256 bit	Protocol protection Symmetrical Encryption 256 bit
Cardholders 30 000	Cardholders 30 000	Cardholders 50 000
Power Outputs 1 Relay DRY / WET (Selectable) 3A 250VA 1 Open collector	Power Outputs 1 Relay DRY / WET (Selectable) 3A 250VA 1 Open collector	Power Outputs 4 Relay, DRY / WET (Selectable), 3A 250VAC
Inputs 4 (1xDoorsensor, 1xButton Exit, 1xAlarm In, 1xTamper)	Inputs 4 (1xDoorsensor, 1xButton Exit, 1xAlarm In, 1xTamper)	Inputs 12 (4xDoorsensor, 4xButton Exit, 1xAlarm In, 1xTamper, 2xAUX In)
Wiegand ports 2	Wiegand ports 2	Wiegand ports 4
More >	More >	More >
